100x100mm 0.5mm Silicone Thermal Pad Sheet Computer CPU Graphics Chip Heat Sink
0.5mm Thermal Pad Sheet Heat Sink for Computer CPU Graphics Chip 100x100mm
Specifications:

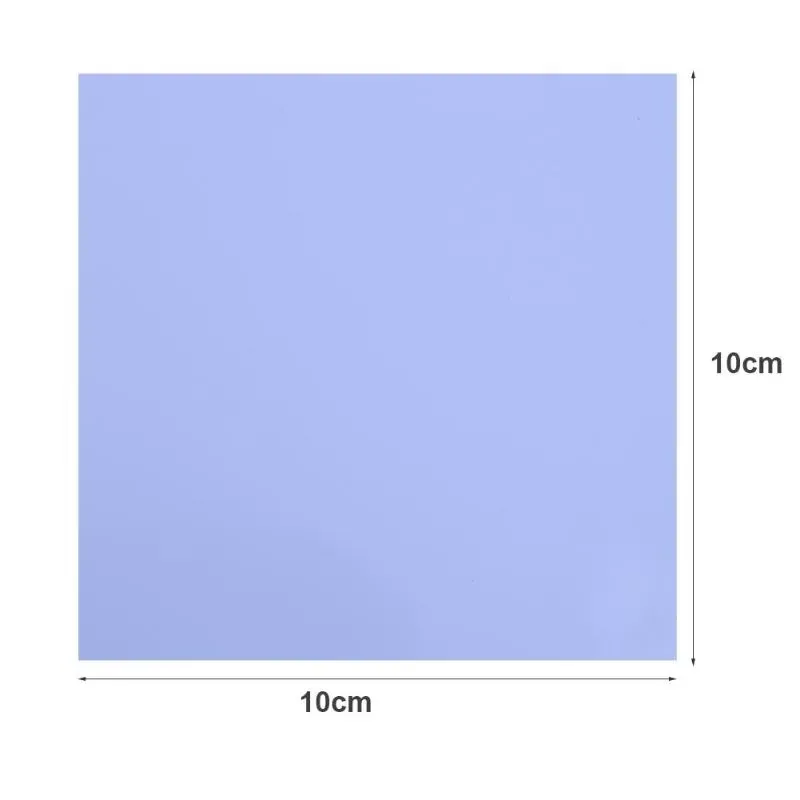

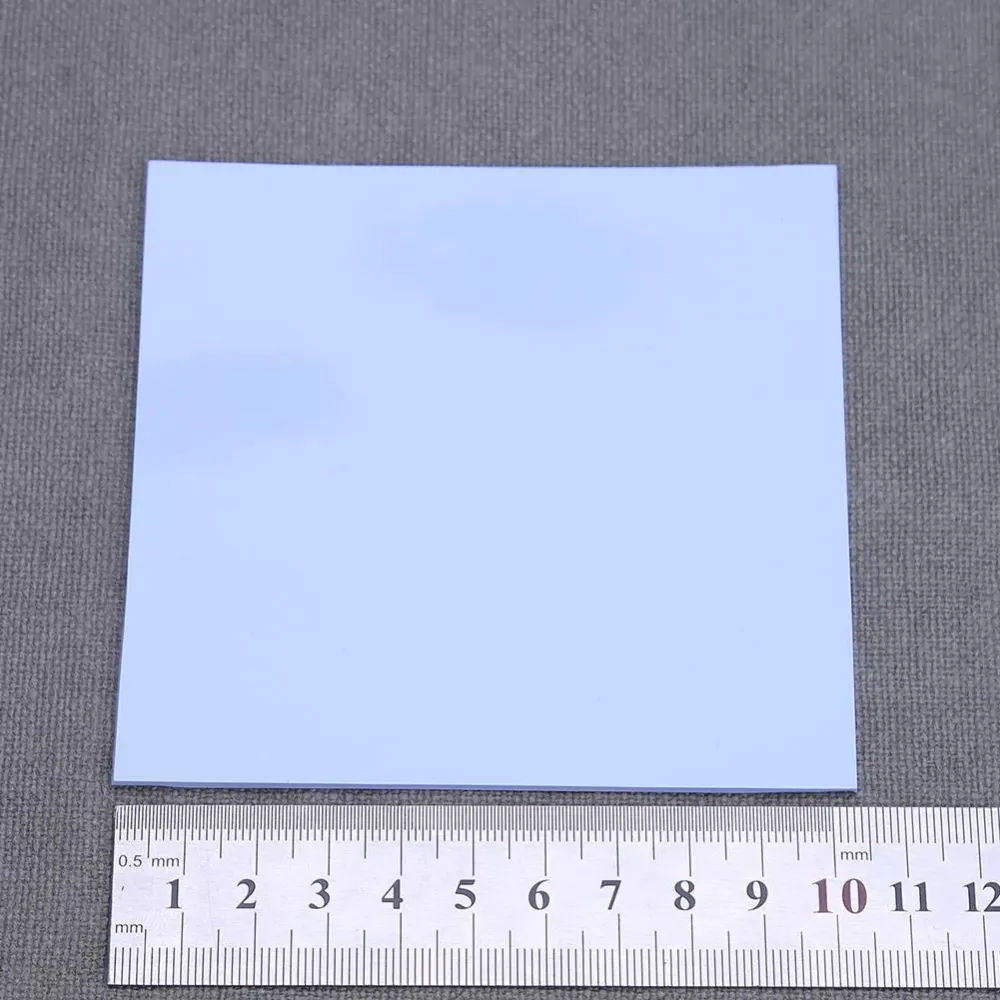

Size: 100 x 100mm/3.94 x 3.94in
Weight: 50g
Features:
Super soft, a little sticky, good thermal conductivity, easy to cut, feels like plasticine, but has a certain degree of plasticity, super insulation, there is a sense of cool put on the arm!
Application: affixed to the graphics card, video memory, Bridge chip, IC controller, power crystal, electrical and electronic products control board, TFT-LCD, switching power supply, LED lamps, etc.
How to use:
1, clear dust on the radiator and fan, clear the old thermal products;
2, make sure the chip and the radiator can be directly contacted;
3, determine the contact location of the chip and the radiator on the radiator;
4, peel off the release paper;
5, thermal sheet pasted at the location determined in step 3 (the bottom of the radiator is better than the surface of the chip);
6, press the thermal sheet for several times, especially the edge part, to make it close to the radiator surface;
7, wait for about 2 minutes, carefully peel off the other side of the release paper from the thermal sheet, that is OK.
Packages:
1 x Thermal Sheet
0.5mm Thermal Pad Sheet Heat Sink for Computer CPU Graphics Chip 100x100mm
Specifications:
Size: 100 x 100mm/3.94 x 3.94in
Weight: 50g
Features:
Super soft, a little sticky, good thermal conductivity, easy to cut, feels like plasticine, but has a certain degree of plasticity, super insulation, there is a sense of cool put on the arm!
Application: affixed to the graphics card, video memory, Bridge chip, IC controller, power crystal, electrical and electronic products control board, TFT-LCD, switching power supply, LED lamps, etc.
How to use:
1, clear dust on the radiator and fan, clear the old thermal products;
2, make sure the chip and the radiator can be directly contacted;
3, determine the contact location of the chip and the radiator on the radiator;
4, peel off the release paper;
5, thermal sheet pasted at the location determined in step 3 (the bottom of the radiator is better than the surface of the chip);
6, press the thermal sheet for several times, especially the edge part, to make it close to the radiator surface;
7, wait for about 2 minutes, carefully peel off the other side of the release paper from the thermal sheet, that is OK.
Packages:
1 x Thermal Sheet
