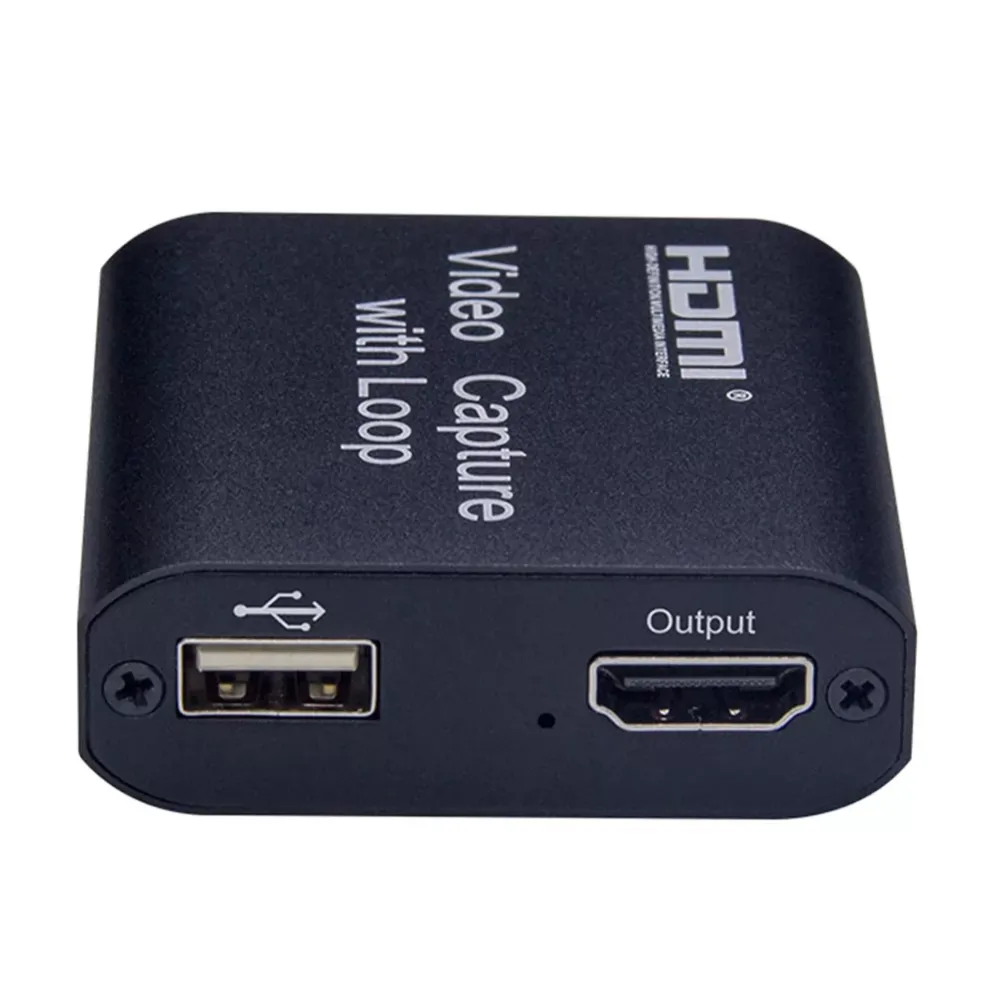

USB HDMI 1080P Video capture Card HDMI to USB 2.0 Video capture Device for Game Streaming Live Stream Broadcast
Description:
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Feature:
- Support HDMI loop out;
- Support input max resolution 4K;
- Support output max resolution 1080P;
- Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);
- Support most acquisition software, such as for VLC, for OBS, for Amcap, etc;
- Support for Windows, for Android, and for MacOS;
- Conform to USB Video and UVC standard;
- Conform to USB Audio UAC standard;
- Compact and portable.
Specification:
HDMI resolution: Max input can be 4K
Support video format: 8/10/12bit Deep color
Video output format: YUV, JPEG
Video output resolution: Max output can be 1080P
Support audio format: L-PCM
Input cable distance: ≤15m, AWG26 HDMI standard cable
Max working current: 0.7A/5VDC
Operating Temperature range: -10 to +55℃
Size: 59x56x19mm/2.32x2.20x0.75"
Weight: 52g
Computer hardware requirement:
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC GT630 or above; NC GT735M or above
Storage: 4G RAM
Connection operation:
1. Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable;
2. Connect the display port and the HDMI output port of the USB capture card through 1 HDMI cable;
3. Connect the USB port of the computer and the USB port of the capture card through a USB cable;
4. Acquisition operation steps (OBS): Open the software, add a new source, select "video capture device', set the screen size,
Select 'Studio Mode' (dual window), click 'Start Recording'
Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Packages:
1 X Video capture Card
1 X USB 2.0 Male to Male Cable
1 X Micro USB Cable
1 X User Manual
