3S 4A Li-ion Li-Po Cylindrical Prismatic Lithium Polymer Battery 3 Cell PCB Module Board Short Circuit Overcharge Protection BMS
Specifications:
For Lithium battery operating voltage: 10.8V ~12.6V
Applicable for:
10.8V (3.6V * 3S) lithium battery & packs
11.1V (3.7V * 3S) lithium battery & packs
12.6V (4.2V * 3S) lithium battery & packs
Cylindrical Lithium battery (Li-ion)
Prismatic Lithium Polymer battery (Li-Po)
Could also work for 3S2P (6 cells) , 3S3P (9 cells), 3S4P (12 cells) etc.
Protections: Short circuit protection,overcharge protection ,over-discharge protection and over current protection
Parameters:
Maximum protection voltage ( for every single cell ): 4.255V ± 0.05V
Minimum protection voltage ( for every single cell ): 2.35V ± 0.05V
Maximum operating current: 4A

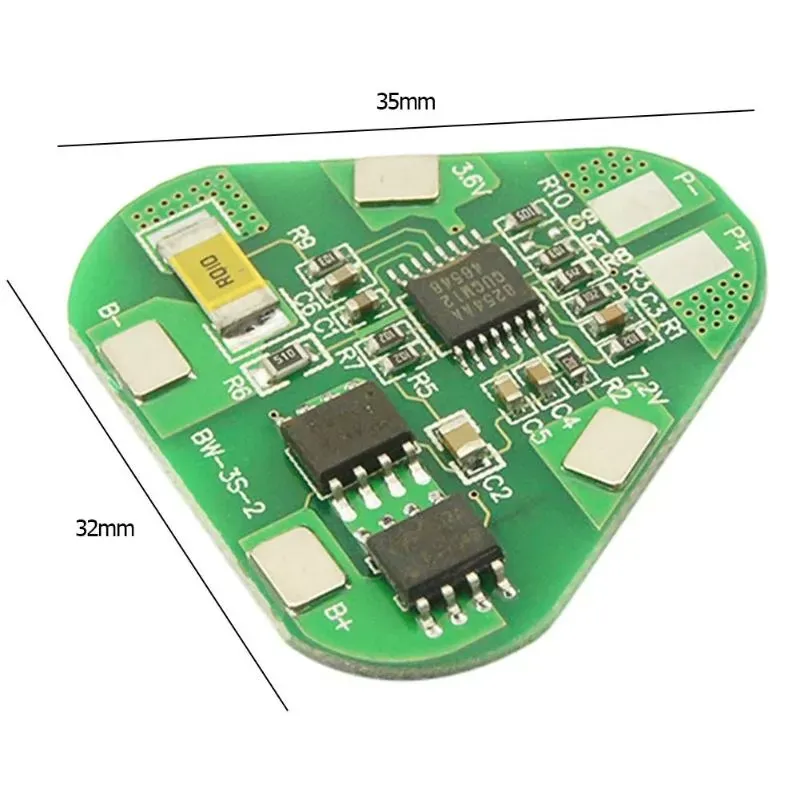

Size: 35mm * 32mm/1.38*1.26"
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.
Packages:
1 x 3S Li-ion Lithium Battery Protection Circuit Board
