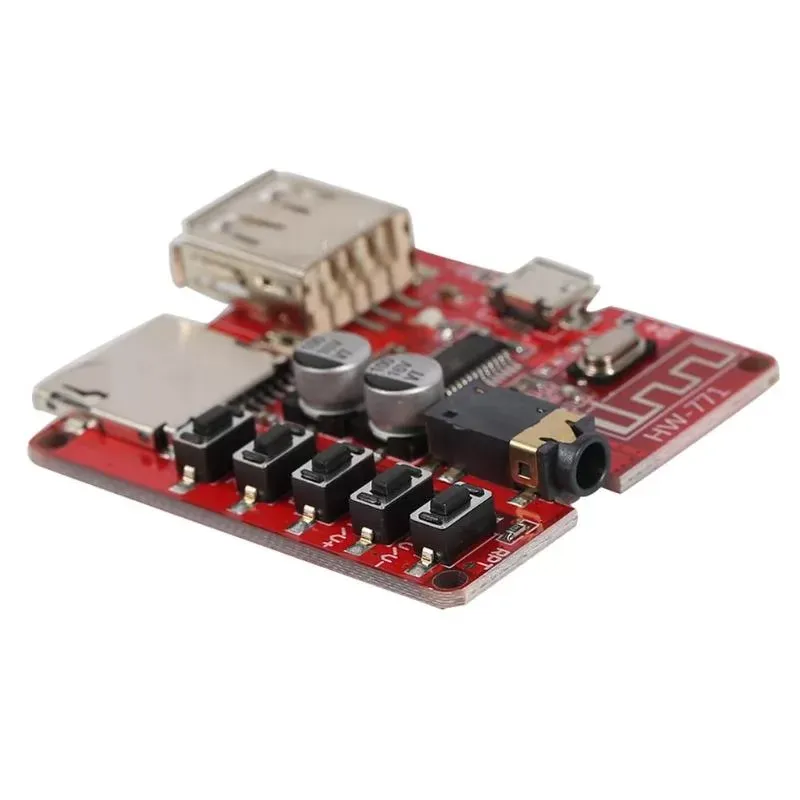

MP3 Blueoth Decoder Board Lossless Car Speaker Audio Amplifier Board Modified Bltooth 4.1 Circuit Stereo Receiver Module 5V
Function:
This module supports Bletoth 4.1. It supports automatic link back function, WAV+APE+FLAC+MP3 lossless decoding, stereo output, and TF slot. It can insert TF card, support U disk and play TF card.
Specification:
Power Supply Interface: Universal Micro USB 5V Power Supply
Power supply pad: external 3.7V-5V power supply modification

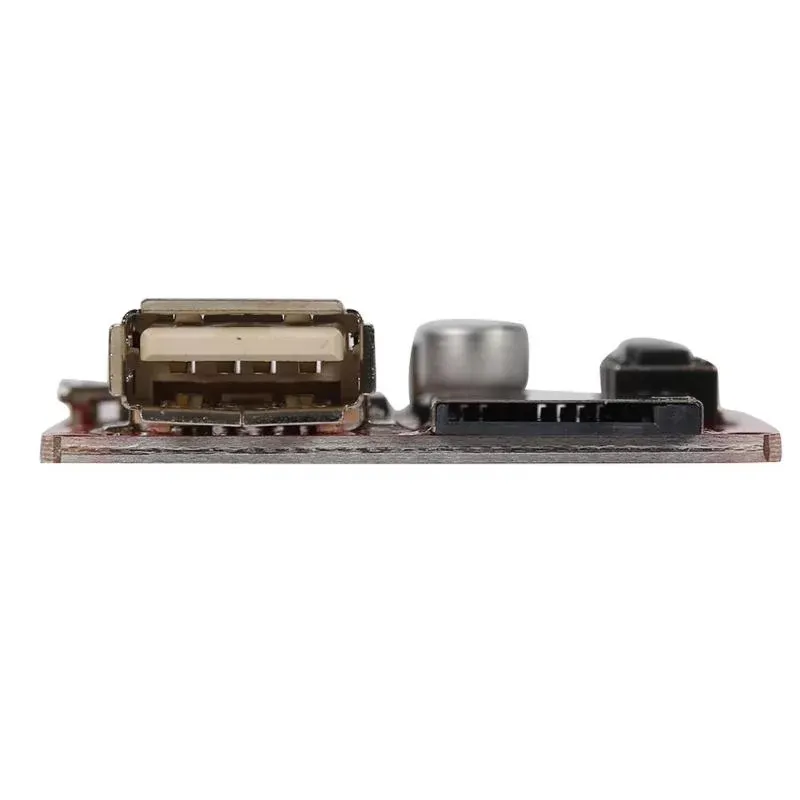

USB (U disk) interface: can support playing MP3, WAV, APE, FLAC files in U disk, support FAT16/32 file format
TF card slot: can support playing MP3, WAV, APE, FLAC files in TF card, support FAT16/32 file format
LED Indicator: Bletoth mode lamp is always on, music playing mode lamp is flickering
3.5mm Stereo Output: Standard 3.5mm Interface, Stereo Source Input, Headset Insertion, Power Amplifier Device Connection

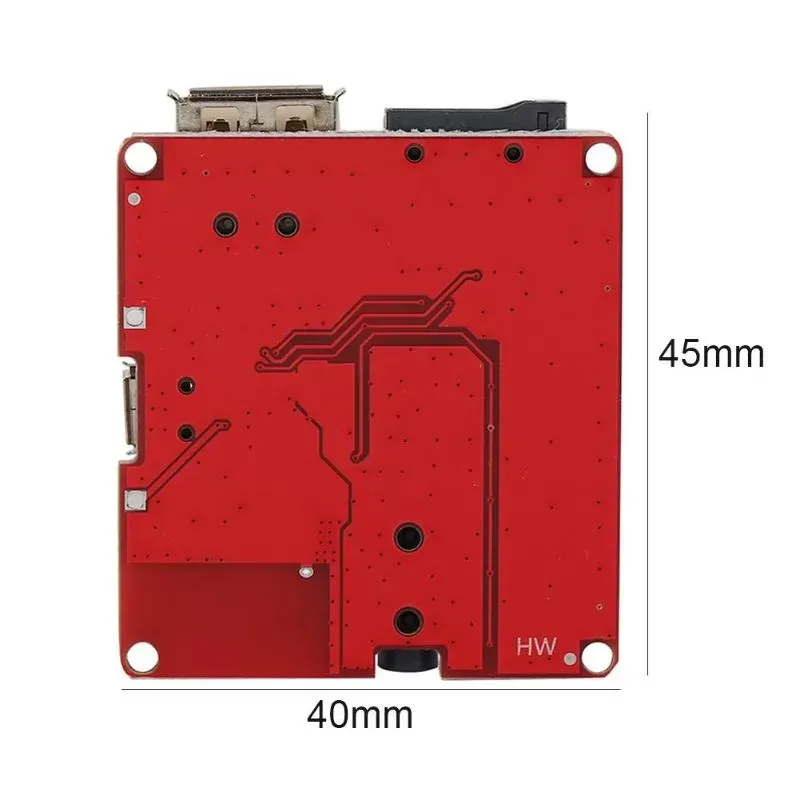

Product size: 45mm*40mm*8mm/1.77*1.57*0.31''
Packing weight: 12g

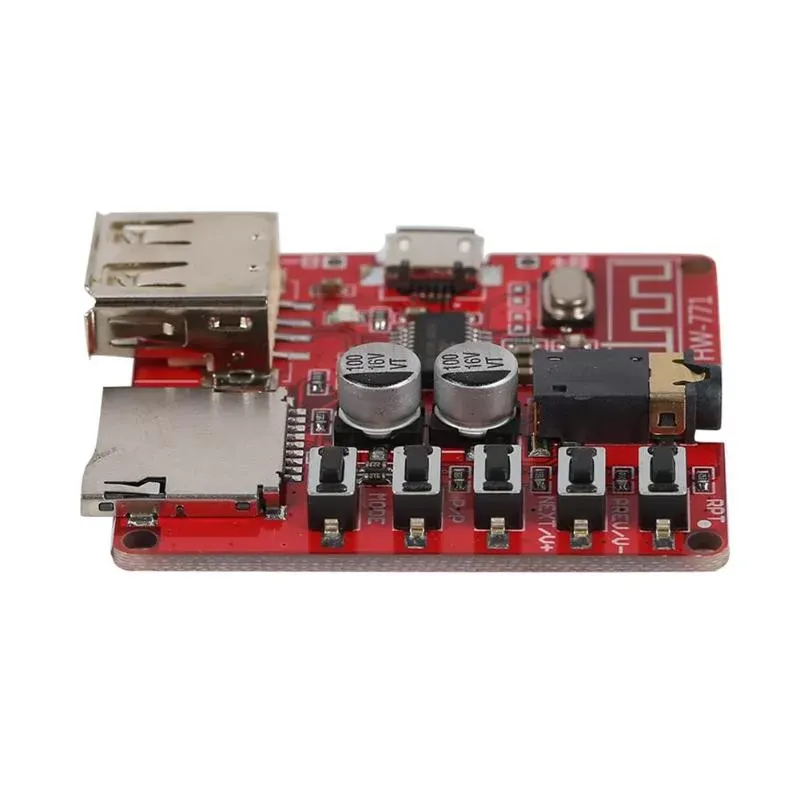

Button Description:
MODE: "Short Press" can switch TF card, U disk and Bleooth mode.
P/P: "Short Press", Play/pause
NEXT/V+: "Short Press" is the next song, and "Short Press" is the volume increase.
PREV/V+: "Short Press" is the last song, and "Long Press" is the volume reduction.
RPT: Short Press for Mono/Loop Switching
Operation Manual:
1. Mode control: When the decoder board has no U disk or TF card, the default mode is when the module is powered on. When the decoder board is plugged in with U disk or TF card, the default mode of module power-on is music mode.
2. Music mode: When you insert a U disk or TF card, you can play the music files stored in it.
3. Blutooth mode: In this mode, the telegraph will insert the English "then Blooth device is ready to pair" to show that it has entered the Bluooth mode and waits for a matching connection; the mobile phone opens the search for "HW-BT" and connects; when the connection is successful, the decoder board will have an English prompt "the Bletooth decvice is connected succesfully", and then the decoder board can play music.
Warm Tips:
1. If the U disk is playing, it is recommended to use USB 5V power supply (not 3.7V lithium battery power supply), because the early U disk does not support 3.3V voltage.
2. U disk or TF card, decoding only supports FAT16/FAT32 file system, not NTFS.
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Packages:
1 X Audio Receiver Board
